Operate BTS channels in a batch

Some customers asked us how to operate BTS channels together, such as how to start up tests together and how to export data all together.

In fact, it's easy. Please refer to the following pictures.

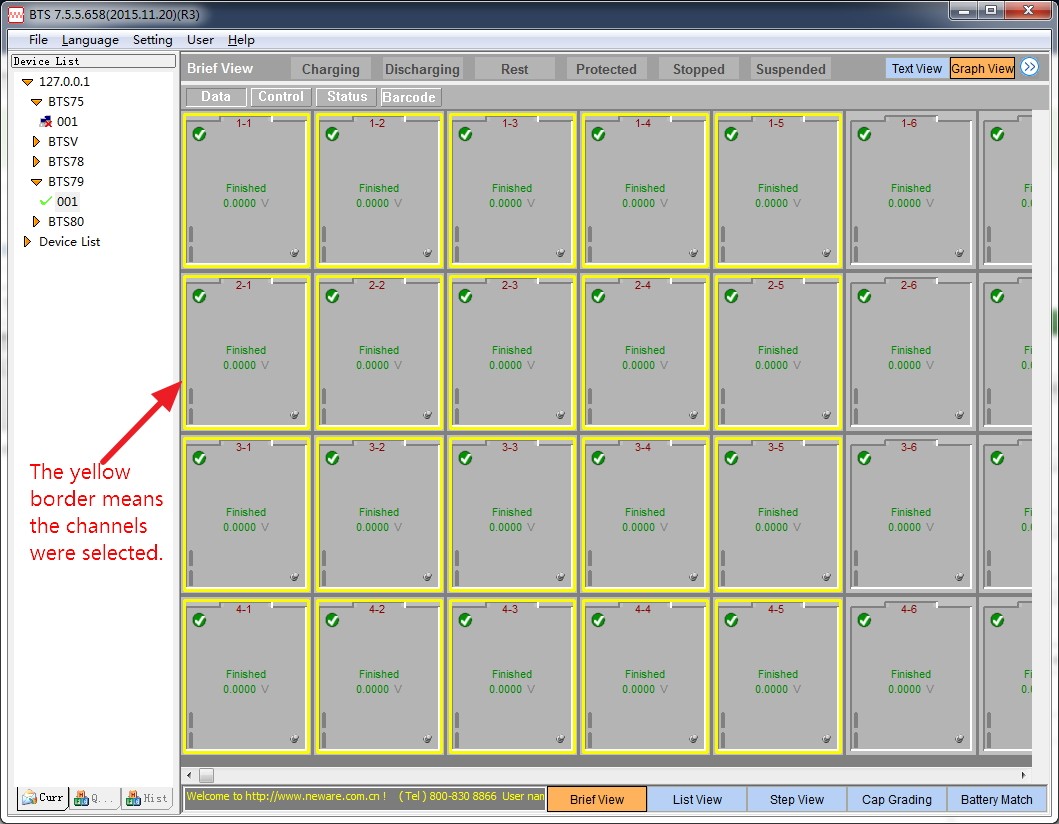

Step 1: In the main working area, you can use CTRl+A to select all the channels, or you can press the CTRL and click the channels you want to operate. If there's a yellow border around the channels, it means the channels were selected.

neware battery testing system

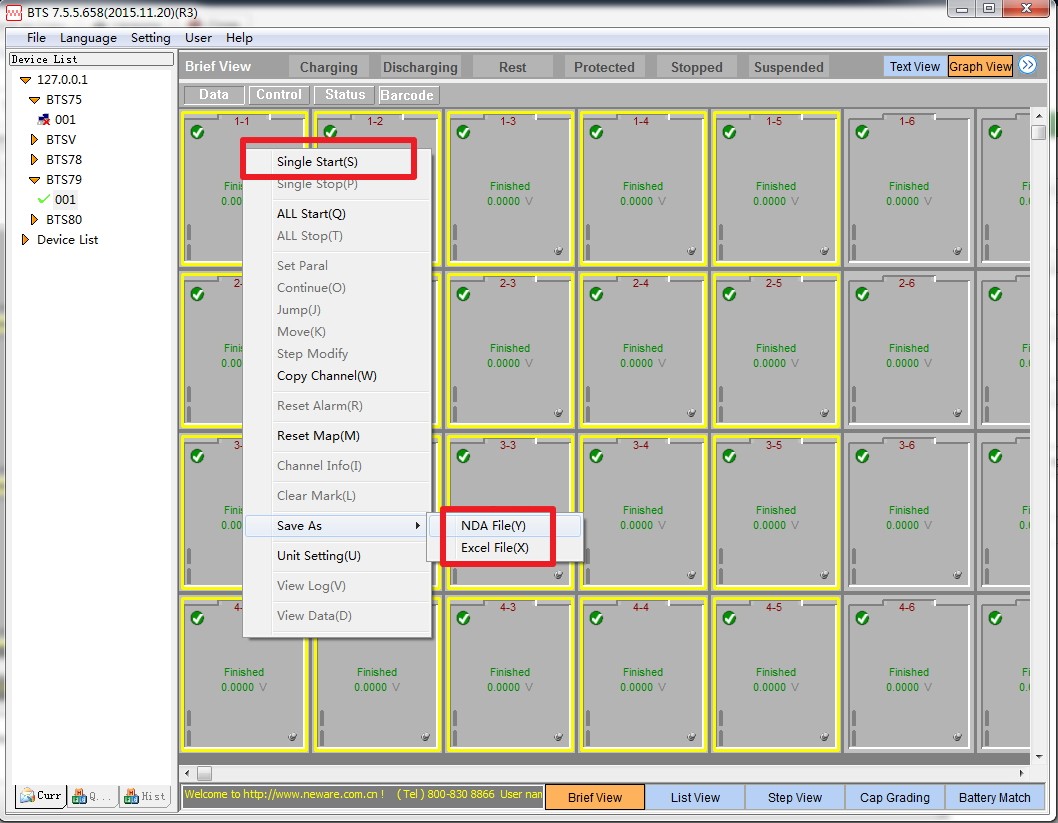

Step 2: Now you can right click on these channels which were selected and choose the operation you want to perform. From here, you can easily save all the selected channels data to NDA or XLS format, right?

neware battery testing system setting
