CE-6000 Cell Tester

5V/6V, 50A~2000A

Born for power cell and ESS cell design, widely used in cell power battery manufacturer and ESS provider lab & factory, the lab for college of mechanical and engineering use it regularly as well. Evaluation effectly the performance of cell, ensure stable running in the application system. Hardware modularity desgin with regenerative function. Various testing method supported, integrated DCIR, HPPC, SOC, DST, PULSE, SIMULATION test, etc.

*Model for reference, please contact us to get the update spec.

208VAC optional can be provided for U.S. & Canada user.

Zero-Negative Voltage Model Support

Contact us to get more information~

Parallel Functions in Module

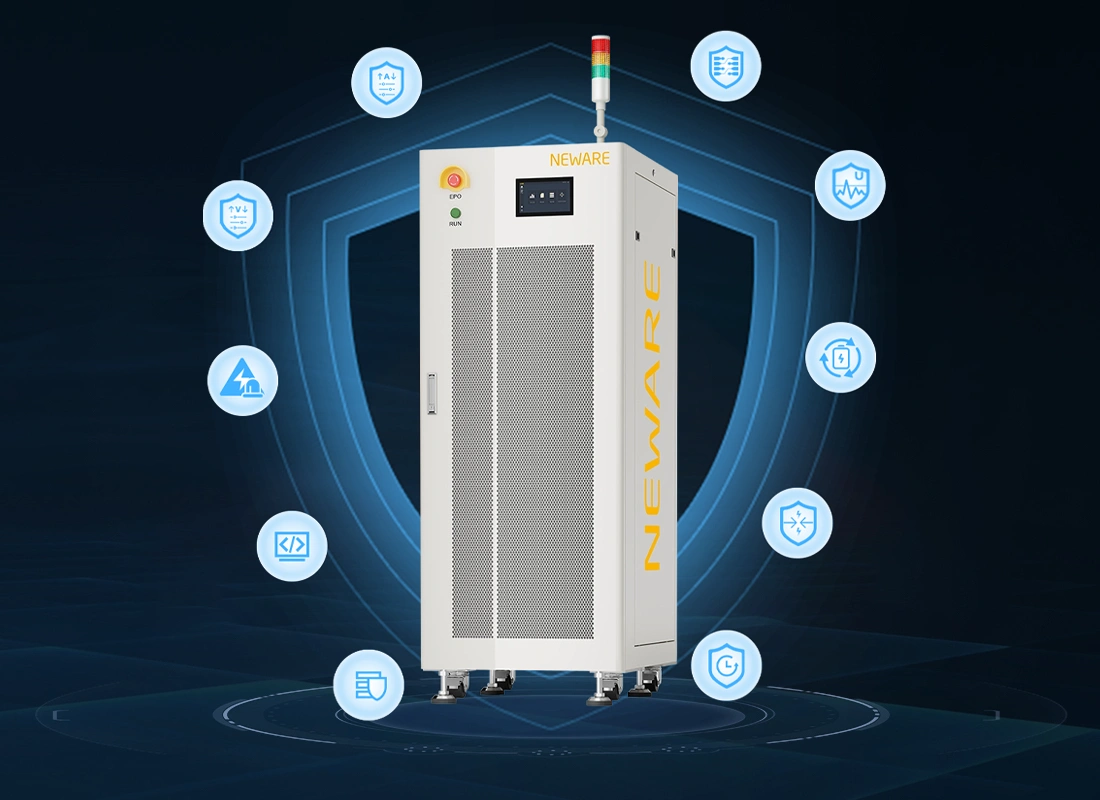

System Safety Protection

• Grid Over/Under-Voltage Protection
• AC Short-Circuit and Phase Loss Protection
• Over-Voltage/Over-Current Output Protection
• Overheating Protection
• Open/Short Circuit Protection
• Emergency Stop Protection
• Self-Diagnosis Protection
• Redundant Voltage Channels Protection
• DC Polarity Reverse Protection
• Power-Off Resumption Protection
• Grid Voltage Phase and Frequency Adaptive
• Adjustable Protection Values for Voltage and Current
• Traceable Protection Log

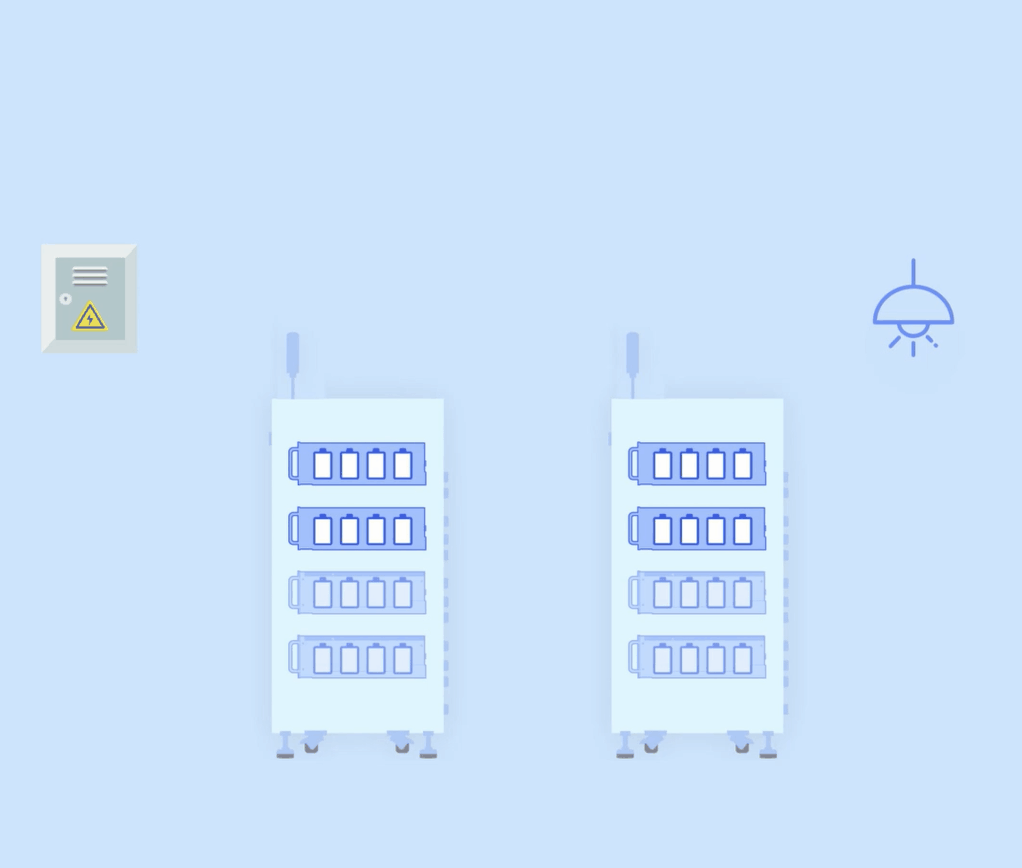

Regenerative Flow

While discharge, the discharge energy will be consumed to other charge channels, while it has rest energy, the energy will be convert and back to the internal grid system by AC-DC module.

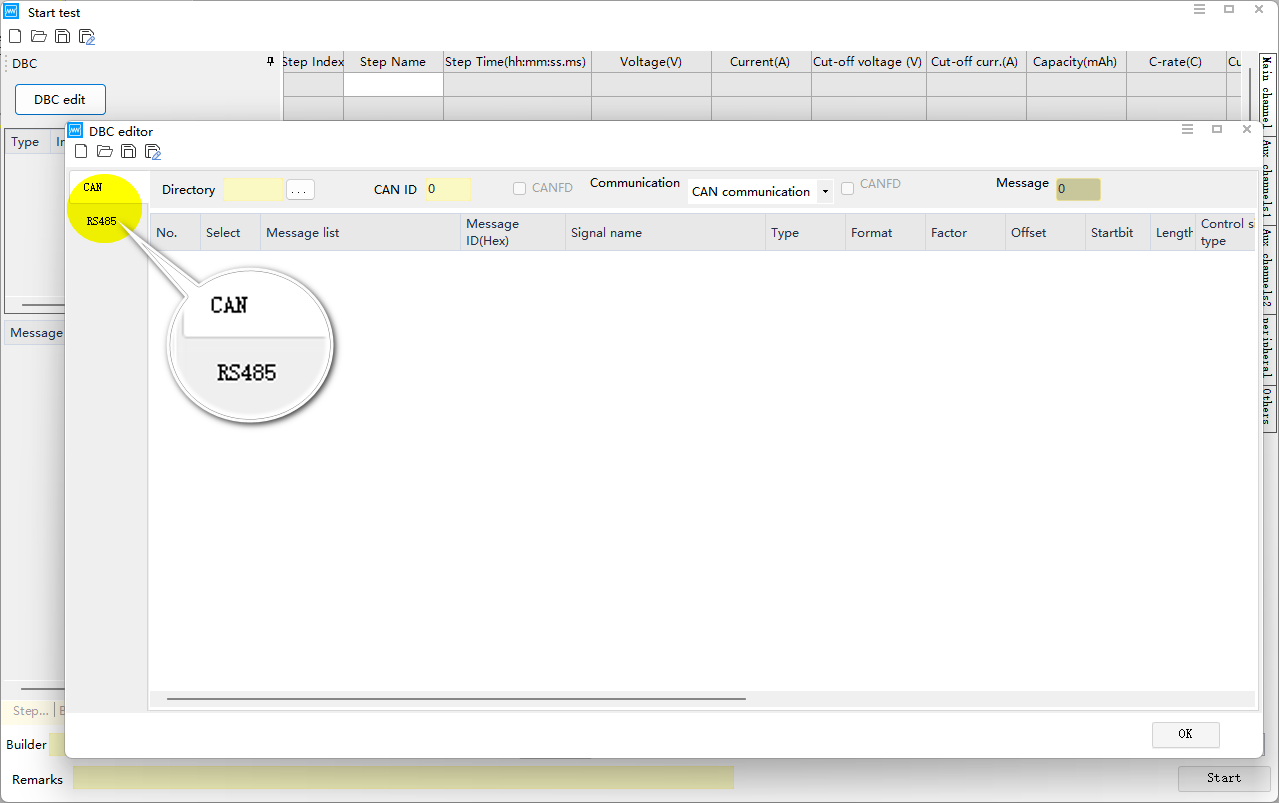

CAN/ RS485 Communication Support

Build-in CAN/RS485 edit interface in BTS software. Easy programme the script in Neware powerful software.

Third-party Test Chamber, Water-cooling Machine, External Pressure fixture, External Aux Temperature Machine, etc.
